| I&T Solution |
Perovskite Manhole Cover
(REF: S-2025) |
| Trial Project |
|
| Solution Feature |
- Integrates perovskite PV with manholes to solve sensor power issues; single manhole generates 50-80kWh annually.

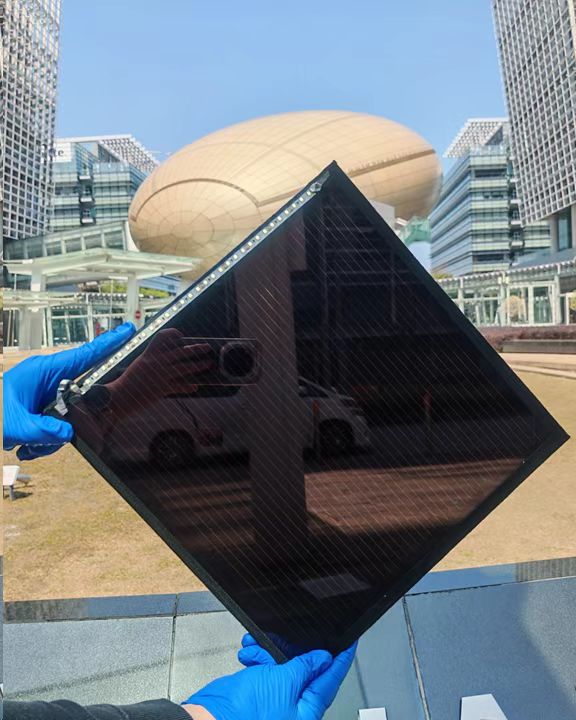

- Innovative seed-induced growth technology enables the efficiency of 300×300mm² perovskite modules to exceed 20%.

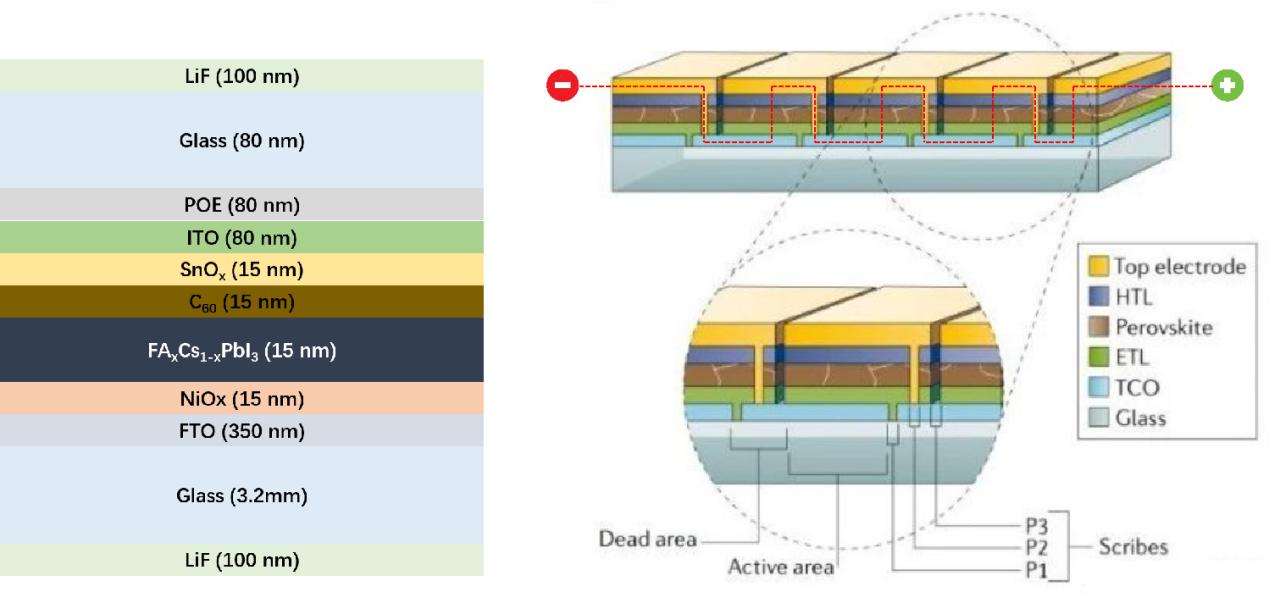

- Interface copolymerization enhances stability; efficiency retention >90% at 85℃/85%RH for 1000h.
- Micro-nano texture layer balances R9/R12 slip resistance and power efficiency for manhole scenarios.
- Modular integrated power supply system can support the 24-hour operation of 3-5 sensors without the need for battery replacement.
|
| Trial Application and Expected Outcome |

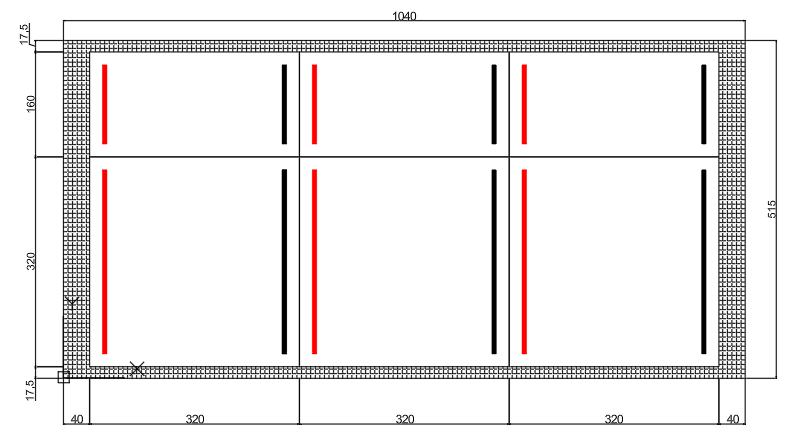

- Produce 515×1040 mm² manhole prototypes at HKUST and Hong Kong Science Park labs via pilot platform.
- Conduct accelerated aging per IEC 61215 to verify 3000h performance under Hong Kong’s climate.
- Install prototypes at EMSD-designated roads; test for 2 months to monitor power-sensor compatibility.
- Commission HKAS for electrical/slip/fire safety certifications to meet Hong Kong road standards.
- Standardize parameters and use automated equipment to control batch errors for stable module production.
|
| Additional Solution Information |
EMSD Trial Project-Perovskite Manhole Cover.docx
|
| Info on I&T Solution Provider |
| Solution Provider | : | Yuanyuan ZHOU | | Address | : | The Hong Kong University of Science and Technology, Clear Water Bay, Hong Kong SAR, China | | Contact Person | : | Yuanyuan ZHOU |
| Position | : | Professor | | Tel | : | （852）2358 7137 | | Email | : |
yyzhou@ust.hk | | Webpage | : | https://www.alvinyzhou.com/ |
|
